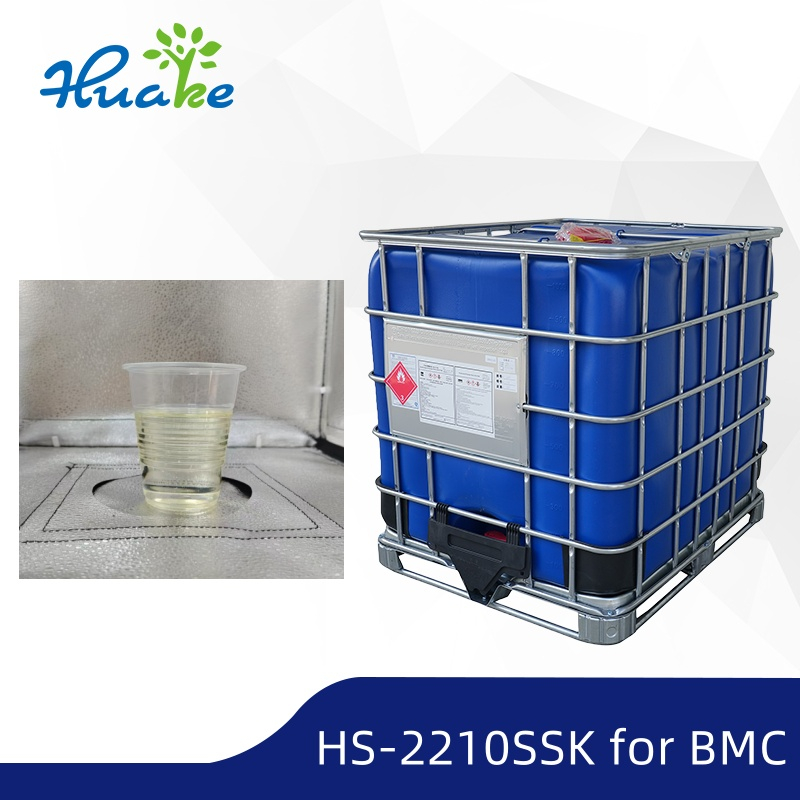

HS-2210SSK Unsaturated Polyester Resin
n Principal Properties & Application：
HS-2210SSK is an unsaturated polyester resin primarily made from isophthalic acid and standard diols, designed for injection/molding applications with BMC. It features high reactivity and excellent colorability. When used in combination with low-shrinkage additives such as HS-9817SSK and HS-9819, it can produce products with high surface quality, superior mechanical strength, and excellent electrical performance. It is suitable for applications such as electrical coil encapsulation and automotive components.
n Specifications of liquid resin：
Item | Unit | Standard Requirements | Test Method |
Appearance | --- | Yellow transparent liquid | GB/T 8237.6.1.1 |
Viscosity | 25℃, mPa.s | 2200-2600 | GB/T 7193.4.1 |
SPI-GT | min | 8-12 | HK-D-DB001 |
SPI-CT | min | 9-15 | HK-D-DB001 |
SPI-PET | ℃ | 220-250 | HK-D-DB001 |
Acid Value | mgKOH/g | 17-23 | GB/T 2895 |
Solid Content | % | 65.5-68.5 | GB/T 7193.4.3 |
Color Index (Harzen) | --- | ≦3 | HK-D-DB036 |
Moisture | % | ＜0.125 | HK-D-DB007 |
Note: SPI values are based on 2% BPO paste.
n Physical properties of Casting(for reference only)：
Item | Unit | Measured Value | Test Method |
Tensile Strength | MPa | 60 | GB/T 2568 |
Tensile Modulus | MPa | 3300 | GB/T 2568 |
Elongation at Break | % | 2.0 | GB/T 2568 |
Flexural Strength | MPa | 100 | GB/T 2570 |
Flexural Modulus | MPa | 3600 | GB/T 2570 |
Impact Strength | kJ/m2 | 9 | GB/T 2571 |
HDT | ℃ | 115 | GB/T 1634 |
Barcol Hardness | --- | 50 | GB/T 3854 |
Note：
1) The preparation of casting specimens follows the GB/T 8237 standard. Curing system: 0.6% Co-Naph, 1% AKZO M-50.；
2) Post-curing treatment for the casting: Room temperature for 24 hours + 60℃ for 3 hours + 110℃ for 2 hours.
n Attention:
Ø During transportation, comply with Chapter 5 of the State Council's Regulations on the Safe Management of Hazardous Chemicals regarding the transportation and handling of hazardous chemicals.The product should be stored in a cool place below 25℃, away from fire sources and isolated from heat. Keep it sealed to prevent moisture intrusion and monomer evaporation.The shelf life is 3 months when stored at temperatures below 25℃.
