Principal Properties & Application：

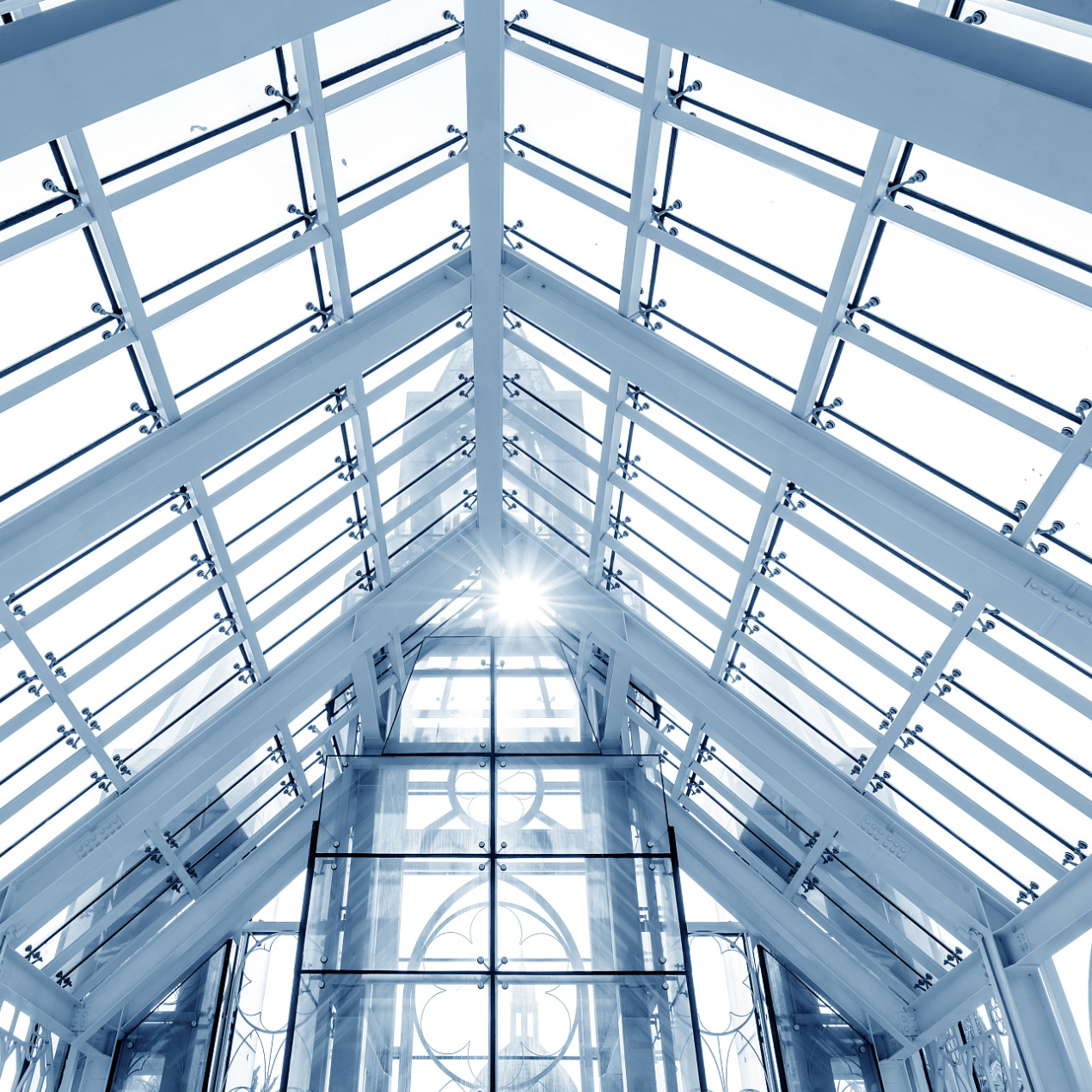

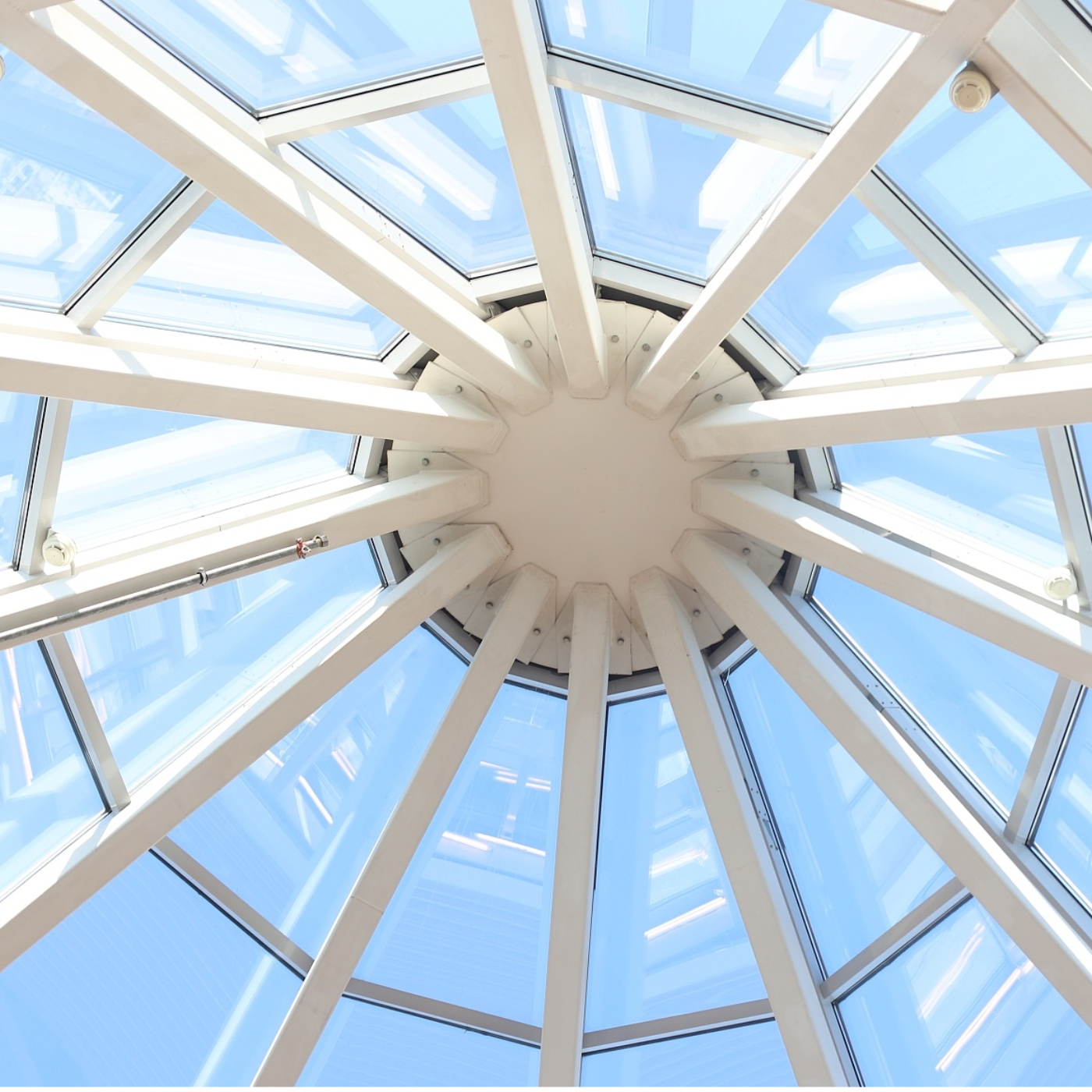

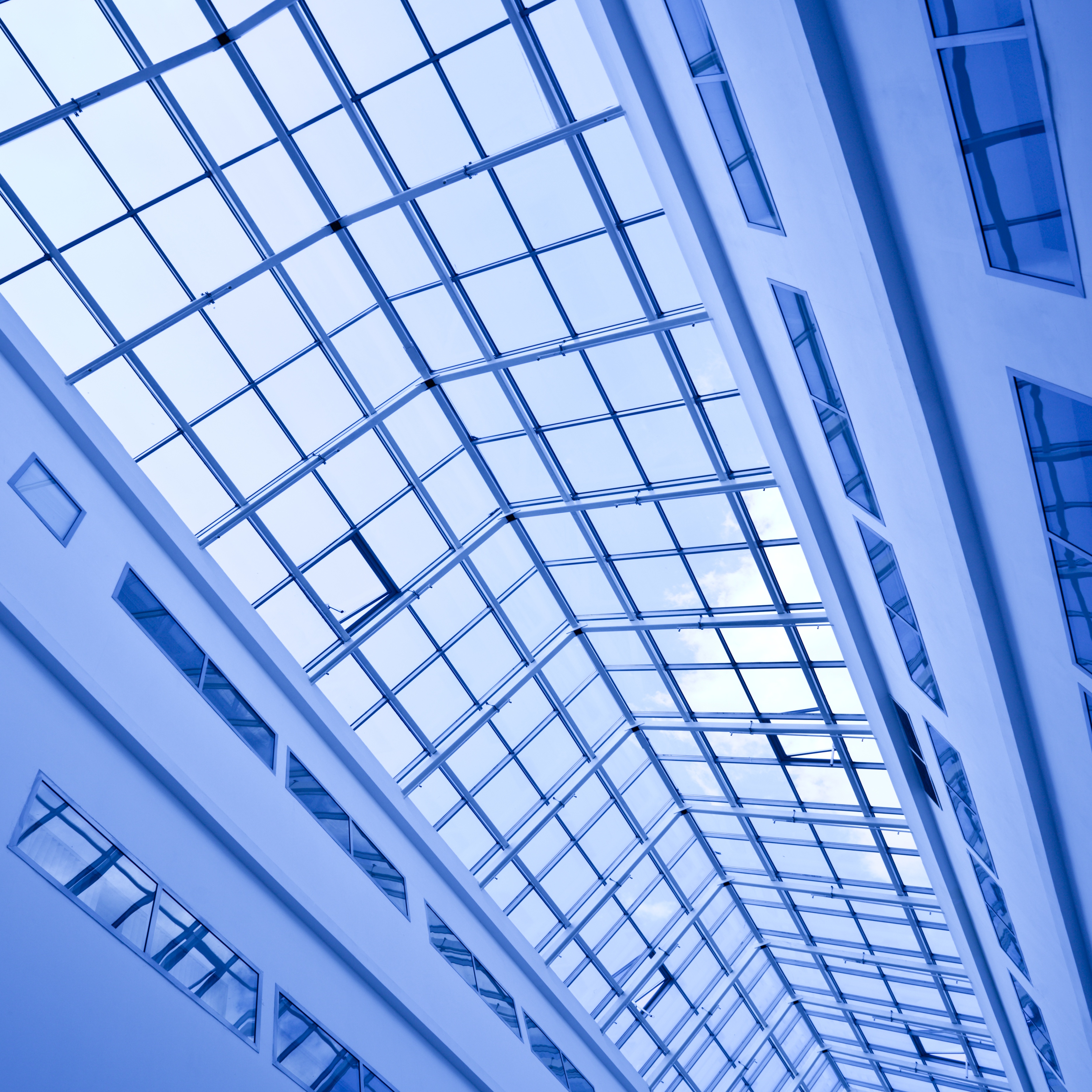

HS-1010B is a kind of unsaturated polyester resin which is used in the production of FRP lighting plate. The FRP made of it has good wettability, mechanical strength , transparency, and anti-aging performance when exposed to the ultraviolet. HS-1010B is suitable for both machine and hand lay-up method.
Specifications of liquid resin：
Item | Standard Requirements | Test Method | Remark |

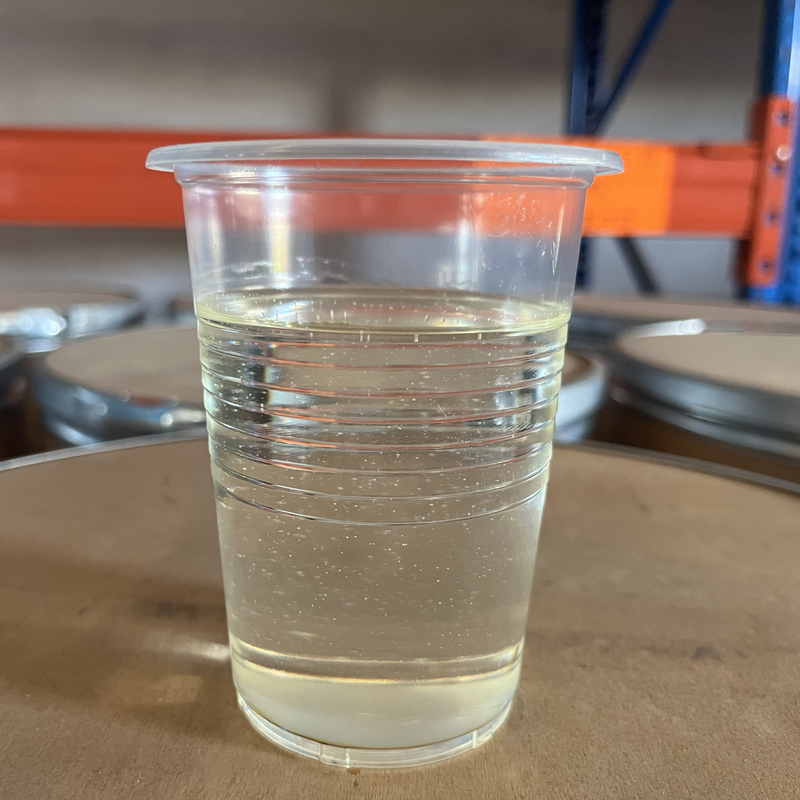

Appearance | Light yellow transparent liquid | HK-F-TM-00 |
|
Colour | ≦50 | HK-F-TM-01 | Hazen |
Viscosity(25℃，cP) | 120-190 | HK-F-TM-03 | November to March |
180-250 | HK-F-TM-03 | April to May, September to October |
250-350 | HK-F-TM-03 | June to August |
*Gel time(25℃,min) | 9.0-13.0 | HK-F-TM-10 |
|
*Curing system in GT test：Accelerator KC: 2%；hardener AKZO M-50: 2%.
Physical properties of casting(for reference only)：
Item | Unit | Test Value | Test Method |
Tensile strength | MPa | 65 | GB/T 2568 |
Tensile modulus | MPa | 3550 | GB/T 2568 |
Breaking elongation | % | 1.9 | GB/T 2568 |
Flexural strength | MPa | 112 | GB/T 2570 |
Flexural modulus | MPa | 3650 | GB/T 2570 |
Impact strength | KJ/m2 | 10.5 | GB/T 2571 |
HDT | ℃ | 78 | GB/T 1634 |
Hardness (Barcol 934-1) | -- | 46 | GB/T 3854 |
Note：1) Curing System: 0.6%Co-Naph 1% ; MEKP 1%；
2) Post curing：RT×24hrs +60℃×3hrs+100℃×2hrs.
