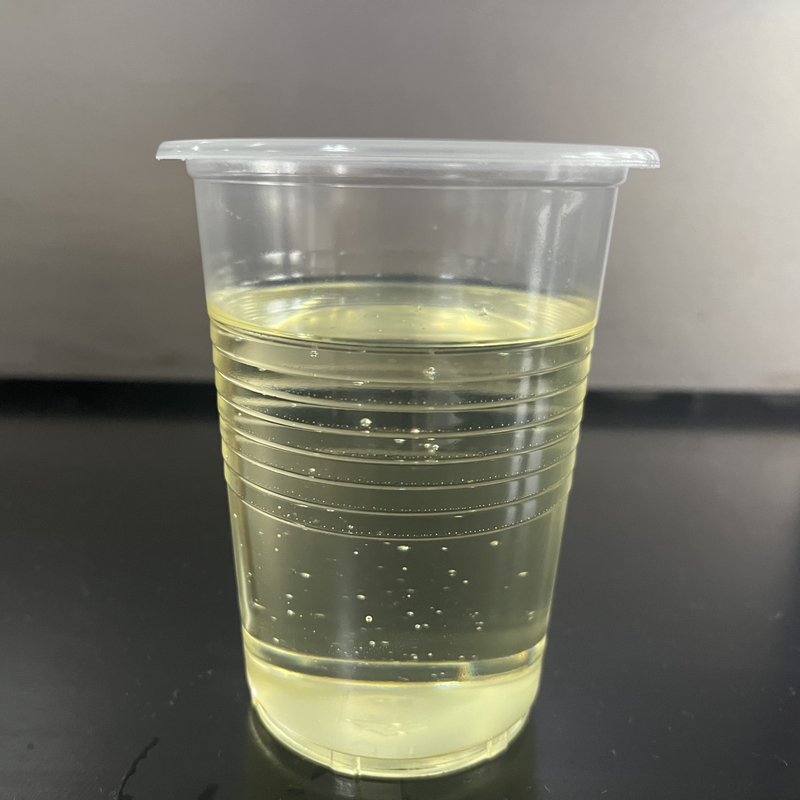

UV-curable Unsaturated Polyester Resin (CIPP) UV2301

Unsaturated Polyester Resin UV2301

UV2301 is a specialized, highly reactive, and medium-viscosity isophthalate neopentylene glycol type unsaturated polyester resin engineered to deliver exceptional structural integrity and reliable performance for demanding industrial applications. The unique chemical backbone of the isophthalate neopentylene glycol formulation provides superior resistance to water, chemicals, and environmental degradation, making it an ideal choice for infrastructure projects that require long-lasting durability under harsh conditions. By selecting this advanced resin, procurement managers and project engineers can significantly reduce the risk of premature material failure and ensure the long-term stability of their composite structures.

Principal Properties & Core Advantages

A critical advantage of UV2301 is its precise handling characteristics. Formulated with magnesium oxide, the resin is highly stable and optimally thickened. This controlled rheology results in a medium-viscosity profile that delivers excellent glass fiber wettability. For manufacturing and processing teams, this means the resin can rapidly and thoroughly saturate fiberglass reinforcements without excessive dripping or pooling. Thorough impregnation minimizes the occurrence of dry spots and voids, ensuring a highly uniform composite matrix that maximizes the overall strength of the finished product.

Furthermore, UV2301 is specifically designed to be ultraviolet lamp cured. Its highly reactive nature translates to a remarkably fast curing speed when exposed to the appropriate UV light spectrum. This rapid polymerization process offers substantial value for project contractors by significantly reducing processing times and operational downtime. The quick transition from liquid to a solid state not only accelerates project completion rates but also yields excellent mechanical properties, including high tensile strength, flexural modulus, and impact resistance.

Thanks to this specific combination of chemical stability, efficient handling, and robust final properties, UV2301 is highly suitable for ultraviolet curing trenchless repair (CIPP) applications. It is meticulously designed to meet the rigorous demands of rehabilitating critical infrastructure, including sewer pipelines, as well as oil and gas pipelines.

Specifications of Liquid Resin

The technical parameters of the liquid resin are strictly monitored to guarantee batch-to-batch reliability and consistent processing behavior. The table below details the essential specifications, including appearance, viscosity, and solid content. These standardized metrics are vital for evaluating the material's compatibility with specific impregnation equipment and ensuring optimal performance during application.

Curing System Details: Achieving the optimal mechanical performance of the UV2301 resin requires precise adherence to recommended curing protocols. Based on standardized SPI testing methodologies, the confirmed curing system utilizes Hardener AKZO CH-50: 2%. This specific hardener ratio ensures a controlled exothermic reaction, facilitating a complete and efficient cross-linking process that locks in the resin's superior physical properties.

Advanced CIPP Solutions for Pipeline Rehabilitation

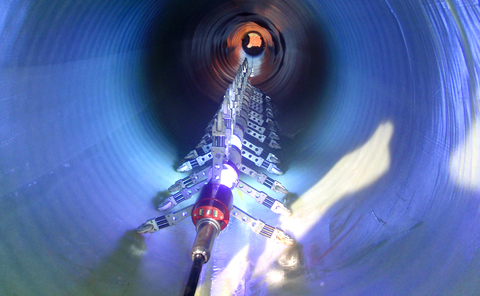

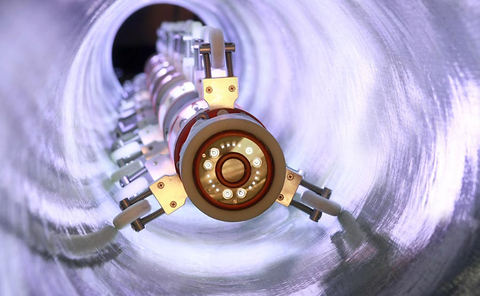

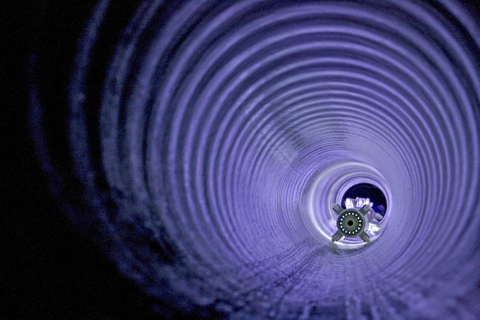

The UV2301 UV-curable unsaturated polyester resin is specifically engineered for the ultraviolet curing trenchless repair, widely known as Cured-In-Place Pipe (CIPP) lining. As aging infrastructure becomes a pressing global challenge, traditional excavation and pipe replacement methods are often too costly, time-consuming, and disruptive to urban environments. This specialized resin offers a highly efficient, non-destructive alternative designed to restore the structural integrity of compromised pipelines. By utilizing ultraviolet light to cure the resin-impregnated liner directly within the host pipe, UV2301 forms a continuous, jointless, and highly durable new pipe within the old one. It is tailored to meet the rigorous requirements of demanding environments, focusing primarily on sewer systems and oil and gas transportation networks.

Sewer Pipeline Trenchless Repair

Municipal sewer pipelines are constantly exposed to harsh conditions, including continuous water flow, abrasive materials, and severe chemical corrosion caused by hydrogen sulfide and other waste by-products. When these underground networks suffer from cracks, leaks, or structural degradation, the UV2301 resin provides a reliable rehabilitation solution. During the CIPP process, the resin-saturated liner is inverted or pulled into the damaged sewer line and inflated. Once exposed to UV light, the resin cures rapidly, creating a tough, impermeable barrier that seals leaks and prevents groundwater infiltration.

The cured liner exhibits superior resistance to the acidic and alkaline environments typical of municipal wastewater systems. Furthermore, the smooth interior surface of the newly formed pipe significantly improves hydraulic capacity, ensuring optimal flow rates and reducing the likelihood of future blockages. For municipalities and utility contractors, this means a dependable, long-term fix that minimizes road closures, reduces community disruption, and avoids the heavy environmental footprint associated with traditional dig-and-replace methods.

Oil and Gas Pipeline Rehabilitation

Beyond municipal wastewater, the UV2301 resin is highly effective in the trenchless repair of oil and gas pipelines. These industrial networks operate under extreme conditions and transport valuable, often hazardous, materials. Any structural failure or leakage can lead to catastrophic environmental damage and massive financial losses. The resin is formulated to withstand the aggressive chemical nature of hydrocarbons and other industrial fluids.

When applied to oil and gas pipelines, the UV-cured CIPP lining acts as a highly resilient structural reinforcement. It effectively bridges cracks, seals pinhole leaks, and protects the original steel or concrete pipes from further internal corrosion. The rapid UV curing mechanism is particularly advantageous in this sector, as it drastically reduces pipeline downtime. Operators can quickly restore service, maintaining operational efficiency while ensuring compliance with stringent safety and environmental regulations. The resulting liner maintains outstanding dimensional stability and mechanical strength, ensuring the safe transport of resources over an extended service life.

Operational Benefits for Contractors and Project Managers

Choosing UV2301 for CIPP projects translates into tangible operational and economic benefits for procurement teams and on-site contractors. The ultraviolet curing process offers precise control over the curing time, unlike traditional ambient or heat-cured resins that can be unpredictable depending on weather conditions. This predictability allows construction crews to work more efficiently and complete projects within tight schedules.

Additionally, the resin is designed for optimal wet-out characteristics, ensuring uniform saturation of the liner materials without dry spots or weak points. Its stable handling properties before UV exposure provide workers with a comfortable installation window, reducing material waste and lowering the risk of premature curing. Ultimately, this UV-curable resin empowers project managers to deliver reliable, durable pipeline rehabilitations that extend asset lifespans, reduce ongoing maintenance costs, and provide a superior return on investment for infrastructure upgrade initiatives.
