Replacing metal parts with composites often forces a tough compromise. You want high mechanical strength and major weight reduction. However, surface aesthetics usually suffer. Heavy post-processing ruins unit economics for visible automotive panels. Precision electrical housings face similar sanding and filling delays.
Formulating composites using low-profile SMC BMC Unsaturated Polyester Resin eliminates this frustrating surface quality gap. Manufacturers engineer shrinkage out of the curing phase entirely. You can achieve flawless Class A surface finishes directly from the mold.
This guide covers the chemical mechanics behind zero-shrinkage resins. We explore necessary design constraints for avoiding common surface defects. You will also learn about rigorous tooling requirements and strict criteria for evaluating resin suppliers. These steps prepare you for high-volume, defect-free composite production.
Key Takeaways
Zero-Shrinkage Chemistry: Low-profile (LP) unsaturated polyester resin systems neutralize curing shrinkage, preventing micro-porosity and surface waviness.
Application-Specific Matrices: SMC (Sheet Molding Compound) is optimal for large, flat Class A automotive panels; BMC (Bulk Molding Compound) excels in highly complex, dimensionally tight electrical components.
Design Imperatives: Achieving a flawless surface requires strict adherence to tooling rules, such as maintaining rib thicknesses below 0.75x the base wall thickness to prevent sink marks.
Supplier Viability: True vendor qualification requires looking past per-ton pricing to evaluate custom formulation capabilities, batch-to-batch stability, and cycle-time optimization.
The Chemistry of Class A Surfaces in SMC and BMC Resins
Standard thermoset curing causes severe volumetric shrinkage. The cross-linking process pulls polymer chains tightly together. This physical contraction pulls the surface inward away from the mold wall. It exposes underlying glass fibers instantly. We call this defect fiber print-through. Shrinkage also causes visible sink marks and hidden internal voids.
Low-Profile (LP) resin systems solve these chemical issues completely. Specialized SMC BMC Unsaturated Polyester Resin incorporates unique thermoplastic additives. These specific additives expand rapidly during the exothermic cross-linking phase. Their volumetric expansion directly offsets the natural polymer shrinkage. The material achieves near-zero dimensional change inside the tool. You get a glass-smooth finish right out of the press.
Low-VOC formulations matter immensely for modern applications. Automotive interior parts and lighting housings often suffer from fogging. Harmful outgassing deposits residue on clear lenses. This degrades optical clarity significantly over time. Modern resin formulations isolate styrene emissions safely. They comply strictly with global OEM emission limits. This keeps delicate clear parts pristine for years.
SMC vs. BMC: Selecting the Right Matrix for Your Production Line
Dimensional and geometric parameters dictate your matrix choice entirely. You must match the material form to the component architecture.

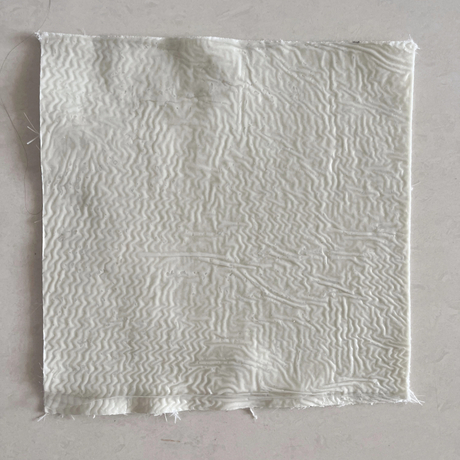

SMC uses longer glass fibers for superior strength. They range from 12 to 50mm in length. You buy SMC in continuous, pre-impregnated sheet form. It works best for high-strength, large surface area components. Think of automotive hoods, fenders, and expansive deck lids. SMC provides incredibly consistent mechanical strength. It guarantees minimal surface waviness across broad exterior spans.

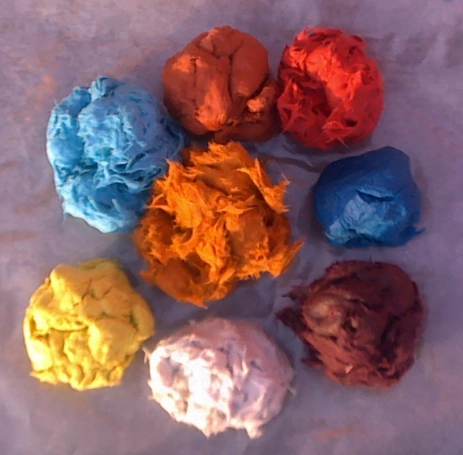

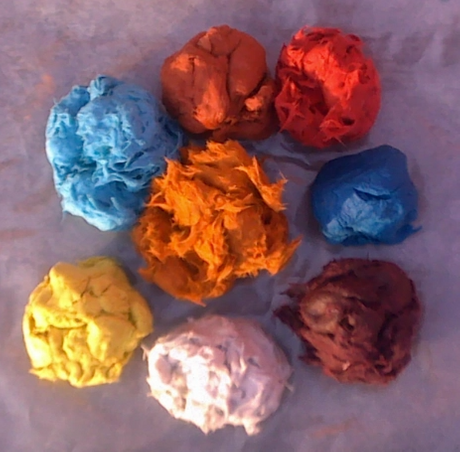

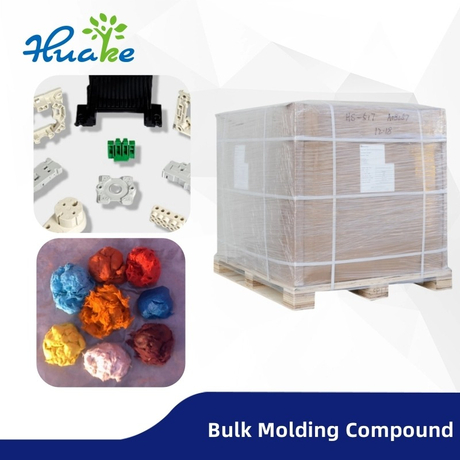

BMC uses much shorter fibers for complex flows. They measure between 3 and 24mm. It looks and feels exactly like heavy dough. BMC delivers superior flow properties under pressure. You can process it easily via injection or transfer molding. It excels at filling intricate geometries and deep cavities. Electrical switchgears and heavy-duty circuit breakers rely heavily on BMC matrices.
Cost-to-volume economics also separate these two materials. SMC spreads expensive tooling costs effectively across massive, single-piece parts. BMC minimizes raw material scrap perfectly. You can pre-weigh BMC dough precisely. This creates maximum efficiency for high-volume, small-component manufacturing.
Matrix Comparison Summary Chart
Feature |
SMC (Sheet Molding Compound) |
BMC (Bulk Molding Compound) |
Fiber Length |
12mm to 50mm |
3mm to 24mm |
Material Form |
Continuous flat sheets |
Dough-like bulk mass |
Best Processing Method |
Compression molding |
Injection and transfer molding |
Ideal Applications |
Automotive hoods, deck lids, large panels |
Switchgears, circuit breakers, small housings |
Primary Advantage |
High strength across large surface areas |
Excellent flow for deep cavities and complex shapes |
Engineering Design Rules to Prevent Surface Defects
Even premium resins fail under poor structural designs. The part architecture must never induce thermal mass imbalances. You must strictly follow engineering design rules. Flawless Class A surfaces demand extreme precision.
Here are the mandatory design imperatives for preventing surface defects:
Controlling Sink Marks (Rib Design): You cannot let surface depressions ruin the cosmetic side. Non-visible structural ribs must not exceed 0.75 times the nominal base wall thickness. Thicker ribs create isolated pockets of thermal mass. They shrink differently during cooling. This pulls the Class A surface inward and creates a visible dent.
Draft Angle Tolerances: Clean ejection prevents surface scuffing during demolding. For Class A visible surfaces, you must specify draft angles between 1.5° and 3.0°. Non-visible interior faces can utilize tighter tolerances between 1.0° and 1.5°. This ensures the component leaves the steel tool smoothly.
Bonding and "Read-Through" Limits: Manufacturers often join inner structural panels to outer Class A panels. You must restrict inner bonding flanges to 16-25mm wide. Limit your structural adhesive lines to 0.5-3.0mm in thickness. Excessive adhesive causes physical "read-through" on the exterior face. The glue line becomes painfully visible from the outside.
Design Parameter Quick Reference
Design Element |
Acceptable Tolerance / Ratio |
Defect Prevented |
Structural Rib Thickness |
≤ 0.75x nominal wall thickness |
Sink marks and surface depressions |
Class A Draft Angle |
1.5° to 3.0° |
Scuffing and drag marks during ejection |
Bonding Flange Width |
16mm to 25mm |
Adhesive read-through on exterior panels |
Adhesive Line Thickness |
0.5mm to 3.0mm |
Curing distortion and wavy surface finishes |
Tooling Realities and Processing Requirements
Thermal management in tooling remains absolutely mandatory. Precise heating circuits govern the chemical curing speed directly. You must use high-quality oil or advanced electric cartridge systems. The temperature delta across the mold face impacts resin flow behavior. It also determines the final surface gloss entirely. Uneven mold heat creates dull spots and uncured edges.
Tool steel selection separates successful mass production from costly failures. High-compression molding requires severely hardened tooling. You should specify rigid grades like P20 or 4140HT steel. Engineers design these tools to withstand up to 45,000 lbs of pressing pressure. The steel must never deflect under massive tonnage. Tool deflection ruins dimensional accuracy and causes flash.
In-Mold Coating (IMC) elevates exterior panels to automotive standards. For the highest tier of surface finishes, manufacturers integrate IMC technology. The press injects a specialized coating during the final compression cycle. This high-pressure injection fills microscopic surface voids instantly. You receive a pre-primed, paint-ready surface directly out of the press. This eliminates expensive manual primer sanding applications entirely.
Sustainability, Compliance, and Life Cycle Assessment (LCA)
Modern manufacturers prioritize environmental safety and strict compliance. Uncured resin contains styrene monomer. Active ventilation is required during the mixing and pressing phases. However, once fully cross-linked, the composite transforms entirely. The final product is highly stable and completely non-toxic. It is exceptionally safe for prolonged human handling and extreme environments.
End-of-life co-processing addresses the persistent "un-recyclable" myth head-on. Cured SMC and BMC scrap holds significant secondary industrial value. It is fully compliant with EU Waste Framework Directives. Manufacturers utilize shredded scrap effectively in cement kilns. The cured resin provides vital thermal fuel for the fire. The glass fibers and minerals calcine directly into usable cement clinker. Nothing goes to the landfill.
We must evaluate component weight versus the total carbon footprint. You gain a massive Life Cycle Assessment (LCA) advantage here. Replacing heavy steel assemblies with integrated SMC parts lowers vehicular weight dramatically. Lighter vehicles burn less fuel over their operational lifespan. Electric vehicles gain crucial battery range. This lowers the overall manufacturing and lifetime carbon footprint significantly.
How to Evaluate SMC BMC Resin Suppliers
Selecting the right chemical partner dictates your final surface yield rates. Avoid generic commodity buyers who only import standard grades. Look for active R&D teams. They must understand how to customize complex formulations quickly. Quality suppliers adjust reactivity for fast cycling or high-flow behavior. They carefully tweak shrink profiles to match your specific CAD geometry.
What to watch out for when qualifying premium material vendors:
Batch Consistency Verification: Evaluate the supplier’s automated compounding controls closely. Minor variances in mineral fillers disrupt the sensitive curing profile. Inconsistent fiberglass dispersion destroys Class A surface yield rates instantly.
Prototyping and Testing Capabilities: Assess their willingness to provide small test batches. You desperately need these custom samples for accurate mold-flow validation before mass production.
Delivery Lead Times: Check their sustained production capacity thoroughly. They must comfortably meet typical 10-14 week OEM production ramp-ups without delaying your lines.
Technical Processing Support: Ensure they assist your engineers actively. They should help troubleshoot mold temperature deltas during the critical initial pressing trials.
Using a highly customized SMC BMC Unsaturated Polyester Resin guarantees consistency. Customization ensures the complex chemistry matches the physical steel mold perfectly. You cannot achieve zero defects using off-the-shelf, uncalibrated raw materials.
Conclusion
Achieving a flawless Class A finish requires strict tri-party alignment. You absolutely need zero-shrinkage chemical formulation from your resin supplier. You must enforce rigorous part design regarding structural rib-to-wall ratios. You also need high-precision, temperature-controlled hardened tooling. Skipping any single step guarantees expensive surface defects.
For engineering specifiers, the immediate next action is clear. Initiate a thorough mold-flow analysis using your finalized CAD models. Request customized material samples from trusted suppliers immediately. Tailor these exact samples to your specific compression or injection methodology. Lock in these chemical parameters early to ensure flawless, high-volume production.
FAQ
Q: Which is better for automotive parts: Epoxy or Unsaturated Polyester Resin?
A: Polyester (UPR) is the industry standard for mass-produced parts due to its rapid room-temperature curing, lower cost, and excellent Class A surface capabilities. Epoxy is reserved for extreme-stress aerospace applications requiring carbon fiber matrices, but carries a severe cost penalty and slower cycle times.
Q: Do SMC/BMC composites degrade or yellow over time?
A: Unsaturated polyester resins are naturally resilient but sensitive to prolonged UV exposure. High-quality suppliers custom-blend UV inhibitors and suggest targeted top-coats or In-Mold Coatings (IMC) for exterior applications to prevent yellowing.
Q: Is DMC the same as BMC?
A: Yes. DMC (Dough Molding Compound) and BMC (Bulk Molding Compound) are generally interchangeable terms. European and Asian manufacturers often use DMC, while BMC is universally recognized for the same dough-like, short-fiber matrix.
Q: Are SMC/BMC electrical components inherently waterproof and flame retardant?
A: The cured matrix is non-porous and naturally water-resistant. For electrical safety, non-halogenated flame retardants can be integrated into the resin formula to achieve UL 94 V-0 or self-extinguishing ratings.
