High-volume composite manufacturing constantly pushes the limits of structural integrity. You need materials capable of handling intense pressures without compromising their intended shape. However, achieving consistent dimensional stability and mechanical strength remains a major engineering challenge on the factory floor. Surface defects, warped geometries, and inconsistent load-bearing capacities often stem from poor material selection early in the design phase.
The critical matrix governing flow behavior, shrinkage rates, and final part integrity is the resin system itself. If you get this specific matrix wrong, you will inevitably face high scrap rates and structural failures. This comprehensive guide explores the intricate world of SMC BMC Unsaturated Polyester Resin formulations. We will evaluate specific material compositions, examine strict processing compatibility limits, and map out industry compliance standards. You will learn exactly how to select the optimal material system tailored for your most demanding industrial applications.
Key Takeaways
Selection between SMC and BMC depends heavily on required fiber length (15-50mm vs. 5-20mm) and part complexity.
Low Profile Additives (LPAs) and precise MgO thickening control are mandatory for achieving zero-shrinkage and Class-A surface finishes.
Modern resin systems must address stringent compliance standards, including UL 94 flame retardancy and low-VOC (styrene-free) requirements.
Optimal processing economics rely on matching resin rheology with specific molding temperatures (120-160°C) and pressures (30-100 atm).
Material Selection Framework: Formulating for Precision and Strength
Aligning Resin with Compound Type
You must understand how unsaturated polyester resin functions differently based on the chosen compounding method. While both Sheet Molding Compounds (SMC) and Bulk Molding Compounds (BMC) rely on cross-linking thermoset matrices, they demand entirely different rheological behaviors. In SMC, the resin must maintain an initially low viscosity to properly wet out continuous glass rovings. It then undergoes a controlled thickening phase. In BMC, the resin acts immediately as a heavy carrier paste. It must suspend high volumes of mineral fillers and short fibers without allowing them to separate during intensive mixing.

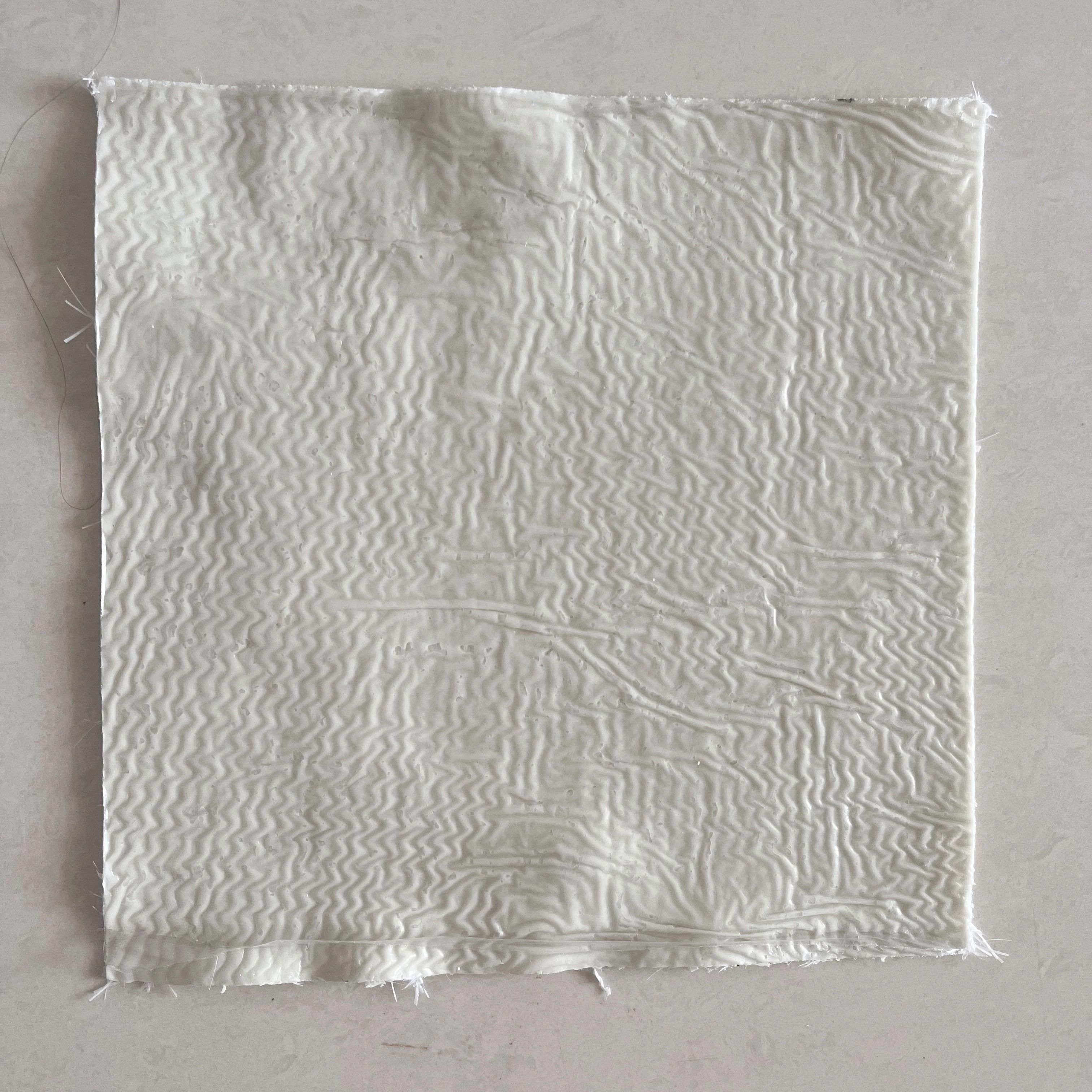

SMC Formulation Baselines
SMC is engineered for maximum load-bearing capabilities. A standard high-performance SMC formulation relies on a very specific balance of ingredients. The resin acts as the vital binder that transfers stress across the long glass fibers during mechanical loading.
Resin Matrix: Approximately 28% of the total volume.
Glass Fibers: Approximately 27% long chopped fibers, typically ranging from 15mm to 50mm in length.
Mineral Fillers: Approximately 40% fillers like calcium carbonate to manage exothermic heat.
Additives: 5% specialized catalysts, thickeners, and internal mold releases.
This formulation excels in producing high-strength, large-surface structural parts. Automotive body panels, heavy-duty truck deflectors, and large EV battery enclosures rely heavily on SMC. The long fibers provide the necessary impact resistance and tensile strength required for these massive components.
BMC Formulation Baselines
BMC sacrifices some mechanical strength to achieve unparalleled flow characteristics. Manufacturers blend BMC in heavy-duty sigma mixers to create a dense, dough-like consistency. The formulation adjusts the ratio of resin to reinforcements to favor complex tooling geometries.
Resin Matrix: Approximately 30% to ensure high flowability through narrow mold gates.
Glass Fibers: Approximately 20% short fibers, typically ranging from 5mm to 20mm in length.
Mineral Fillers: Approximately 45% dense fillers to ensure rigidity and prevent shrinkage.
Additives: 5% specialized agents for curing and pigmentation.
This putty-like rheology is explicitly designed for complex, thin-walled, or high-precision molding. It flows effortlessly around intricate inserts, making it the premier choice for circuit breakers, motor housings, and highly detailed pump components.
Decision Matrix
Selecting the right material requires a strict trade-off analysis. You must balance the peak mechanical strength offered by SMC against the dimensional precision required for intricate geometries offered by BMC. The chart below outlines the critical parameters to help guide your material specification process.
Performance Criteria | Sheet Molding Compound (SMC) | Bulk Molding Compound (BMC) |
Primary Advantage | Peak mechanical strength and impact resistance | Dimensional precision for intricate geometries |
Fiber Length | 15 - 50 mm | 5 - 20 mm |
Processing Method | Compression molding only | Injection, transfer, or compression molding |
Ideal Applications | Large flat panels, structural enclosures | Small housings, electrical contactors |
Controlling Dimensional Stability: Shrinkage and Rheological Optimization
The Mechanics of Zero-Shrinkage
Standard polyester resin cross-linking naturally induces volumetric shrinkage. As the polymer chains react and form a three-dimensional network, they pull tightly together. This shrinkage causes warped edges, internal stresses, and unacceptable dimensional deviations in molded parts. You must counter this chemical reality using Low Profile Additives (LPAs). LPAs are specialized thermoplastics dissolved into the base resin. When the exothermic heat of the curing process spikes, these LPAs undergo micro-phase separation. They expand slightly, perfectly offsetting the natural shrinkage of the cross-linking polyester. This localized expansion maintains tight dimensional tolerances and prevents part distortion.
Thickening Stability and Maturation
The manufacturing process relies on a precise two-stage viscosity profile. Magnesium oxide (MgO) serves as the primary thickening agent in these formulations. When introduced, MgO reacts with the carboxylic acid groups present in the polyester chains. This reaction builds molecular weight and drastically increases the compound's viscosity over a maturation period of several days. Consistent thickening control is absolutely vital. A predictable rheological profile prevents phase separation between the liquid resin and the heavy mineral fillers. It ensures a completely homogeneous fiber distribution as the material flows under pressure during molding. If maturation is unstable, you will experience dry spots, resin-rich corners, and catastrophic part failures.
Surface Finish Quality
Cosmetic perfection requires optimized resin behavior inside the mold cavity. Carefully tuned resin viscosity allows trapped air to easily escape before the material gels. Controlled gel times give the resin enough time to replicate the polished tool surface perfectly. By managing these rheological properties, you eliminate common surface defects like porosity, flow lines, and sink marks. This chemical optimization enables high-gloss or "Class-A" finishes straight from the mold. You bypass the need for expensive secondary operations like sanding, priming, and post-painting.
Navigating Performance Standards and Regulatory Compliance
Thermal and Electrical Benchmarks
Engineers consistently push composite materials into extreme operating environments. Modern SMC BMC Unsaturated Polyester Resin formulations easily handle these benchmarks. They offer continuous heat resistance frequently exceeding 150°C without losing structural integrity. Furthermore, the inherent molecular structure of polyester delivers superior dielectric strength. The material resists electrical tracking and arcing even under high voltage. This makes these compounds the baseline standard for electrical enclosures, switchgear components, and power distribution hardware.
Flame Retardancy Frameworks
Safety regulations demand robust fire resistance in almost all industrial sectors. You cannot rely on the base resin alone to stop a fire. Formulators integrate active mineral fillers like Alumina Trihydrate (ATH) into the mix. When exposed to extreme temperatures, ATH undergoes an endothermic reaction. It releases water vapor to actively cool the surface and quench the flame front. You must navigate strict testing frameworks to validate these materials. Modern formulations ensure compliance with the following critical standards:
UL 94 (V-0, V-1): Strict vertical burn tests requiring the material to self-extinguish within seconds without dripping flaming particles.
IEC 60695: Glow wire testing that simulates the effect of an overheated electrical wire contacting the molded enclosure.
ASTM E84: Surface burning characteristics testing for parts utilized in architectural or transit interior applications.
Environmental and Safety Trends
The chemical industry is rapidly shifting toward greener, safer formulations. Traditional systems rely heavily on styrene monomers as cross-linking agents. Styrene produces high levels of Volatile Organic Compounds (VOCs) during molding. Regulators strictly monitor these emissions. To address this, material scientists developed low-VOC and styrene-free unsaturated polyester resin systems. These modern formulations substitute alternative monomers that cross-link effectively without generating harmful vapors. Adopting these advanced resins helps manufacturers meet stringent RoHS and REACH compliance requirements. It also aligns directly with internal corporate sustainability goals while improving factory floor air quality for operators.
Processing Economics and Manufacturing Compatibility
Volume and Scale Feasibility
You must evaluate whether the production volume justifies the specific tooling required for these compounds. The production sweet spot for SMC and BMC processes typically ranges from 500 to 100,000 parts annually. Traditional metal stamping requires massive initial investments and struggles with complex, multi-functional geometries. High-volume thermoplastics handle intricate shapes but fail under extreme heat and heavy mechanical loads. Thermoset molding hits the perfect middle ground. It allows you to consolidate multiple metal parts into a single molded composite structure. This greatly accelerates assembly times while delivering superior strength.
Molding Parameters
Understanding the strict baseline processing windows prevents costly manufacturing errors. The specific resin formulation entirely dictates these functional limits. If you push the material outside these parameters, you risk incomplete curing or catastrophic pre-gelling.
Parameter | Optimal Range | Impact on Molding Process |
Mold Temperature | 120°C - 160°C | Drives the exothermic cross-linking speed; higher heat reduces cycle time but risks burning. |
Press Pressure | 30 - 100 atm | Forces resin to wet out fibers entirely; ensures deep penetration into complex tool cavities. |
Cure Time | 1 - 5 minutes | Depends on part thickness and catalyst package; dictates total daily production output. |
Common Mistake: Rushing the press closing speed. If the mold closes too quickly, trapped air cannot escape the cavity, leading to severe voids and blistering in the final part.
Storage and Shelf-Life Considerations
Handling pre-catalyzed resins presents a daily operational reality for manufacturers. Once the supplier adds the catalyst and thickener, the chemical clock starts ticking. These materials remain highly sensitive to ambient temperatures. You must utilize climate-controlled environments to store them. Emphasize the importance of selecting systems engineered with a highly stable 3-to-6-month shelf life. A robust inhibitor package prevents premature cross-linking during transit and storage. Securing a stable shelf life minimizes compound waste and ensures strict supply chain predictability.
Supplier Evaluation Checklist for SMC/BMC Resin Systems
Batch-to-Batch Consistency
Small variations in liquid resin properties cause massive production headaches on the factory floor. ISO-certified quality control and automated compounding are non-negotiable requirements for any material supplier. When a resin batch features an inconsistent viscosity or an unpredictable gel time, the flow characteristics alter completely. This leads directly to short shots, internal voids, and ultimately, costly scrap rates. You must audit your supplier to ensure they utilize strict digital process controls to guarantee absolute consistency across every single drum delivered.
Custom Formulation Capabilities
No two molding operations are identical. Tooling designs, press tonnages, and factory environments vary widely. Therefore, you need to partner with suppliers who possess strong custom formulation capabilities. They must actively tweak base viscosity, adjust specific gel times, and verify pigment compatibility based on your unique press setup. A rigid, off-the-shelf resin formulation rarely achieves optimal cycle times. Customization ensures the material flows exactly as intended within your specific mold cavities.
Testing and Support Infrastructure
Evaluate your potential suppliers based on the depth of their material science expertise. They must provide comprehensive material datasheets that clearly outline flexural strength, impact resistance, and exact shrinkage rates. However, data alone is insufficient. You need suppliers who provide localized technical support during the critical initial tool trials.
Best Practice: Always require your supplier's technical team to be present during the first pilot run. They can instantly diagnose flow issues and make minor catalyst adjustments before you scale up to full production.
Conclusion
Specifying the correct resin system is a deliberate balancing act between mechanical structural demands, processing limitations, and regulatory compliance.
You must prioritize precise rheological control and LPAs to achieve zero-shrinkage, Class-A surfaces.
Ensure your selected formulation aligns with modern halogen-free and styrene-free safety mandates to future-proof your supply chain.
Move beyond generic material datasheets. Actively request tailored sample formulations and demand hands-on pilot run support from your material partners.
FAQ
Q: What is the typical shelf life of SMC/BMC compounds, and how does the resin affect it?
A: Pre-catalyzed SMC/BMC compounds typically offer a shelf life of 3 to 6 months. The base resin formulation and its specific chemical inhibitor package directly control this duration. Temperature-controlled storage below 25°C is crucial to prevent premature cross-linking and maintain optimal flow characteristics.
Q: How do LPAs (Low Profile Additives) work in unsaturated polyester resins?
A: LPAs are specialized thermoplastic additives mixed into the resin. During the exothermic curing phase, the polyester matrix naturally shrinks. LPAs counteract this by expanding through a micro-phase separation mechanism. This precise expansion neutralizes the shrinkage, allowing for highly accurate dimensions and Class-A surface finishes.
Q: Can SMC/BMC resins be used in injection molding?
A: Yes, but only BMC is suitable for injection molding. BMC features shorter fibers (5-20mm) and a putty-like consistency, allowing it to flow safely through injection nozzles. Traditional SMC contains longer continuous fibers (15-50mm) that would break or clog, restricting it strictly to compression molding.
Q: What makes a resin formulation "halogen-free" or "styrene-free"?
A: Halogen-free resins eliminate toxic flame retardants like bromine, relying instead on mineral fillers like Alumina Trihydrate (ATH). Styrene-free resins replace volatile styrene monomers with alternative, lower-emission cross-linking agents. Both adaptations help manufacturers meet strict modern eco-standards like REACH and RoHS.
