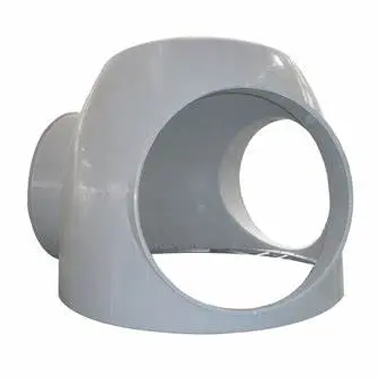

As industries worldwide push for lightweight, high-performance materials, the need for efficient, reliable, and cost-effective composite manufacturing technologies has never been greater. Vacuum Assisted Resin Transfer Molding (VARTM) is one such innovative method that has transformed the way composite parts are produced. By leveraging vacuum pressure to infuse resin into fiber reinforcements, VARTM allows manufacturers to produce components that combine strength, durability, and precision with reduced material waste and environmental impact. This article explains what VARTM is, the detailed steps involved in the process, and how it enhances composite manufacturing compared to traditional techniques.
Vacuum Assisted Resin Transfer Molding (VARTM) is a closed-mold composite manufacturing process that uses vacuum pressure to draw low-viscosity resin into dry fiber preforms placed within a sealed mold. Unlike open molding methods such as hand lay-up, which rely on manual application of resin, VARTM creates a controlled environment that ensures complete resin impregnation, minimizing defects such as voids and dry spots. This precise resin control improves mechanical properties and consistency, making VARTM an ideal choice for applications requiring high structural integrity.
Understanding the VARTM Process
The VARTM manufacturing process consists of a series of methodical steps that provide both predictability and repeatability. Each stage contributes to the quality and performance of the final composite part:
1. Dry Fiber Lay-Up
The process begins by carefully laying dry fiber reinforcements—such as carbon fiber, fiberglass, or aramid fabrics—into a mold cavity that matches the shape of the final component. These fibers are selected and oriented based on the structural requirements of the part, with specific stacking sequences designed to optimize strength and stiffness in critical directions. Preforms may be used to simplify placement and ensure dimensional accuracy. This dry lay-up approach allows for precise control over fiber volume fraction and alignment prior to resin infusion.
2. Vacuum Bagging and Sealing
Once the fiber lay-up is complete, several specialized layers are applied to facilitate resin flow and create an airtight environment. A peel ply layer is placed over the fibers to ease removal after curing. Flow media is added on top to promote uniform resin distribution during infusion. Finally, a vacuum bag film is sealed over the assembly using vacuum sealant tape to ensure the mold is airtight. Resin inlet tubes and vacuum lines are connected to this sealed system. This setup is critical as it enables the vacuum to efficiently pull resin through the fibers.
3. Application of Vacuum
A vacuum pump is then activated to evacuate air from inside the sealed mold. The vacuum serves two important purposes: it compresses the fiber layers, enhancing fiber compaction, and creates a pressure differential that will draw resin into the fiber bed once introduced. This negative pressure environment is key to eliminating air pockets and ensuring full impregnation of the fibers, which is essential for mechanical performance.
4. Resin Infusion
After achieving the required vacuum level, low-viscosity resin is introduced through inlet tubes into the mold. The vacuum pressure naturally pulls the resin across and through the fiber reinforcement, saturating every layer evenly. The presence of flow media ensures that resin distribution is consistent and rapid, preventing dry spots and voids. The resin choice is crucial; it must have optimal viscosity, excellent wetting properties, and appropriate cure characteristics to work effectively with the vacuum infusion process.
5. Curing and Demolding
Once the fiber preform is fully impregnated, the resin is allowed to cure. Depending on the resin system used, curing can occur at room temperature or be accelerated with controlled heating to optimize mechanical properties and reduce cycle time. After curing, the vacuum bag and other consumable materials are removed, and the finished composite part is demolded. Post-curing processes may be applied to further enhance thermal stability and strength.
The Importance of Resin Properties in VARTM
The infusion resin plays a critical role in the success of the VARTM process and the quality of the final composite component. Unlike conventional resins used in hand lay-up or spray-up methods, infusion resins must meet stringent criteria to facilitate smooth flow and robust performance:
1. Low Viscosity for Efficient Flow
Low viscosity ensures that the resin can easily penetrate tightly packed fiber reinforcements under vacuum pressure. This property is essential for achieving complete saturation of large or complex parts without the need for high-pressure injection systems. Viscosities in the range of 150 to 500 centipoise are typical, providing an optimal balance between flowability and mechanical performance after curing.
2. Superior Wetting Capability
Excellent wetting properties allow the resin to thoroughly coat and bond with fiber surfaces, eliminating trapped air and voids. This promotes enhanced interfacial adhesion, which directly translates to improved strength, fatigue resistance, and durability of the composite structure.
3. Minimal Shrinkage During Cure
Resins that exhibit low shrinkage during polymerization help maintain dimensional stability and reduce residual stresses that can cause warping or micro-cracking. This is particularly critical in aerospace and automotive components where tight tolerances and precise fitment are mandatory.
4. Robust Mechanical and Thermal Properties
Post-cure, the resin must provide excellent tensile strength, impact resistance, and thermal stability to ensure long-term performance in demanding environments. High-quality infusion resins, like those offered by Changzhou Huake Polymers Co., Ltd., are engineered to meet these rigorous standards.
How VARTM Enhances Composite Manufacturing
VARTM offers numerous advantages over traditional composite manufacturing techniques such as hand lay-up, spray-up, and high-pressure resin transfer molding (RTM). By automating resin infusion and controlling the environment, VARTM improves part quality, reduces production costs, and minimizes environmental impact:
1. Enhanced Resin Flow Control and Consistency
The vacuum-driven infusion ensures consistent resin distribution and fiber saturation, resulting in parts with higher fiber volume fractions and fewer voids. This level of control is difficult to achieve with manual methods and leads to more predictable mechanical performance and reliability.
2. Improved Mechanical Properties and Structural Integrity
Uniform resin impregnation produces composites with enhanced strength-to-weight ratios, crucial for industries such as aerospace and automotive where structural integrity and weight reduction are priorities.
3. Cleaner, Safer Manufacturing Environment
Because VARTM is a closed-mold process, it drastically reduces emissions of volatile organic compounds (VOCs) and airborne particulates, creating a safer workplace and a greener production method that aligns with sustainability goals.
4. Reduced Tooling and Equipment Costs
VARTM molds are simpler and less expensive than high-pressure RTM molds, making the process accessible for prototyping, small batch production, and larger scale manufacturing without heavy capital investment.
5. Scalability and Flexibility
The technique can be applied to a wide range of part sizes and complexities, from small automotive components to large wind turbine blades, while maintaining quality and efficiency.
Conclusion
Vacuum Assisted Resin Transfer Molding represents a significant advancement in composite manufacturing technology by combining precise resin control, enhanced mechanical performance, and environmental benefits. Its closed-mold, vacuum-driven approach allows manufacturers to produce high-quality, lightweight, and reliable composite parts more efficiently and cost-effectively than many traditional methods.
By selecting high-performance infusion resins, such as those developed by Changzhou Huake Polymers Co., Ltd., manufacturers can optimize the VARTM process to meet the demanding requirements of modern industries including aerospace, automotive, marine, and renewable energy sectors. As the composites market continues to evolve, VARTM stands out as a versatile and sustainable solution poised to meet future challenges.
Changzhou Huake Polymers Co., Ltd. remains committed to innovation in resin chemistry and technical support, helping partners worldwide succeed in advancing composite manufacturing capabilities.
