Selecting the right materials is crucial for successful Vacuum Assisted Resin Transfer Molding (VARTM) projects. VARTM relies on the careful interaction between resin systems, reinforcement fibers, and auxiliary materials to achieve strong, lightweight composites. Choosing compatible materials ensures efficient resin flow, proper curing, and minimal defects during the infusion process. Incompatible or low-quality materials can lead to issues such as voids, dry spots, and weak bonding, compromising the final part’s performance.
Impact on Final Composite Quality
The quality of the final composite product directly depends on material choice. Optimal resin and fiber combinations enable uniform resin impregnation and strong fiber-matrix bonding, resulting in superior mechanical strength, durability, and dimensional stability. Moreover, well-matched supporting materials like peel ply and flow media improve resin distribution and surface finish. Investing time in selecting the right materials enhances production efficiency, reduces waste, and delivers reliable, high-performance composites suitable for demanding industries such as aerospace, marine, and automotive.
Choosing the Right Resin for Vacuum Assisted Resin Transfer Molding

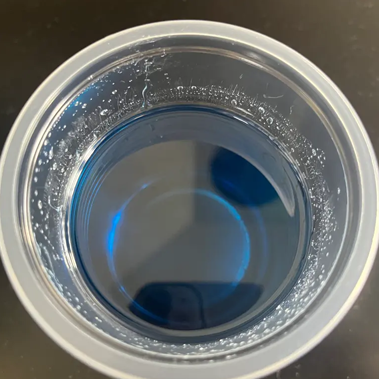

Selecting the appropriate resin is a fundamental step in Vacuum Assisted Resin Transfer Molding (VARTM) as it significantly influences the mechanical properties, chemical resistance, and overall quality of the final composite. Among the most commonly used resins in VARTM are polyester, vinyl ester, and epoxy, each with unique characteristics that suit different applications and infusion requirements.
Polyester Resin
Polyester resin is widely used due to its affordability and relatively fast curing times. It offers good mechanical strength and is compatible with glass fiber reinforcements. However, polyester resins tend to have higher shrinkage and lower chemical resistance compared to other resin types. While suitable for many marine and automotive applications, polyester may not meet the rigorous demands of aerospace or high-performance structural components.
Vinyl Ester Resin
Vinyl ester resin acts as an intermediate between polyester and epoxy. It offers improved toughness, better adhesion to fibers, and superior resistance to chemicals and moisture. Vinyl ester resins have moderate curing times and viscosity, making them a popular choice for components exposed to corrosive environments such as chemical tanks and marine hulls. They are also compatible with various fiber reinforcements and provide better long-term durability than polyester.
Compatibility with Vacuum Infusion
For efficient vacuum infusion, the resin must have low viscosity to flow easily through fiber mats under vacuum pressure. Additionally, the resin’s pot life should be long enough to allow complete wet-out before gelation. While all three resin types—polyester, vinyl ester, and epoxy—can be formulated for vacuum infusion, epoxy and specialized polyurethane resins typically offer the best flow characteristics and processing flexibility.
Manufacturers often prefer resins specifically engineered for infusion processes to minimize defects such as dry spots and voids. Changzhou Huake Polymer Co., Ltd. supplies advanced resin systems optimized for VARTM, featuring ultra-low viscosity, controlled curing profiles, and excellent mechanical properties tailored to diverse industrial needs.
Selecting the Right Reinforcements for VARTM
Choosing the appropriate reinforcement fibers is essential to achieving the desired strength, stiffness, and durability in Vacuum Assisted Resin Transfer Molding (VARTM) composites. The most common fibers used are glass fiber, carbon fiber, and aramid fiber, each offering unique advantages suited for different applications.
Glass Fiber
Glass fiber is widely favored for its affordability, versatility, and good mechanical performance. It offers excellent tensile strength, chemical resistance, and impact tolerance, making it a popular choice in marine, automotive, and construction industries. Glass fibers are easy to handle and compatible with most resin systems, making them ideal for large structural parts produced via VARTM.
Carbon Fiber
Carbon fiber stands out for its superior strength-to-weight ratio and high stiffness. These properties make it indispensable in aerospace, high-performance automotive, and sporting goods applications. Carbon fiber composites offer enhanced fatigue resistance and reduced weight compared to glass fiber, but at a higher material cost. Effective resin impregnation and fiber wet-out are critical to fully realize carbon fiber’s mechanical benefits in VARTM.
Supporting Materials in VARTM
Besides fibers and resin, several auxiliary materials support the VARTM process by facilitating resin flow, vacuum sealing, and part release.
Peel Ply: A porous layer placed atop the laminate that prevents resin bonding to the vacuum bag. It allows easy vacuum bag removal and leaves a textured surface ideal for secondary bonding or finishing.
Flow Media: Specialized fabrics or nets that create channels for rapid, uniform resin flow across the fiber preform. Flow media reduce infusion time and help avoid dry spots.
Release Film: A thin, impermeable barrier that prevents resin adhesion to the vacuum bag or mold, enabling clean demolding and protecting the part surface.
Using the correct combination and placement of these supporting materials is vital for achieving defect-free, high-quality composite parts with efficient processing times.
Matching Materials to Application
Selecting the right materials for Vacuum Assisted Resin Transfer Molding (VARTM) depends heavily on the specific application requirements. Different industries demand distinct mechanical properties, environmental resistance, and regulatory compliance, which influence resin and reinforcement choices.
Aerospace
In aerospace, weight savings, structural strength, and fatigue resistance are paramount. Materials must withstand extreme temperatures and stresses while maintaining dimensional stability. Epoxy resins combined with carbon fiber reinforcements are the preferred choice due to their excellent strength-to-weight ratio and superior mechanical properties. Additionally, aerospace composites often require precise weave patterns and fiber orientations to meet strict certification standards.
Marine
Marine applications demand excellent chemical and water resistance to survive harsh saltwater environments. Vinyl ester resins paired with glass fiber reinforcements are common due to their corrosion resistance and cost-effectiveness. The resin must provide strong adhesion and low permeability, while the reinforcements should resist impact and fatigue caused by waves and weather exposure.

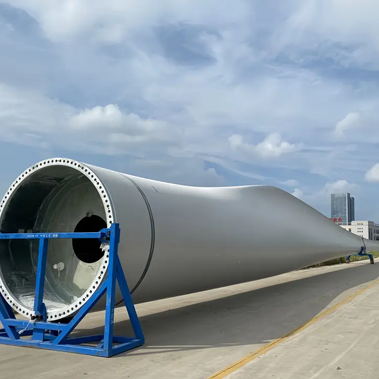

Wind Blades
Wind turbine blades require materials with high stiffness, fatigue resistance, and durability to withstand variable loading over long periods. Composites often use epoxy or advanced polyurethane resins with glass or carbon fibers. Material selection focuses on achieving optimal strength-to-weight balance and excellent fatigue performance to maximize energy efficiency and lifespan.
Working with Huake Polymer
Changzhou Huake Polymer Co., Ltd. is a trusted supplier of advanced resin systems and auxiliary materials optimized for VARTM applications across diverse industries. Huake offers:
Material customization: Tailored resin formulations with adjustable viscosity, cure profiles, and mechanical properties to suit specific project needs.
Technical support: Expert guidance to optimize material compatibility, infusion parameters, and process efficiency.
Quality assurance: Consistent product performance and reliable supply chain support.
Collaborating with Huake Polymer ensures access to cutting-edge materials and industry expertise, helping manufacturers overcome challenges and deliver high-quality composite parts.
Conclusion
Choosing the right materials for Vacuum Assisted Resin Transfer Molding is essential to balancing performance, cost, and processing ease. Understanding the specific demands of your application—whether aerospace, marine, or wind energy—and selecting compatible resin systems, reinforcements, and supporting materials can dramatically improve product quality and manufacturing efficiency.
By partnering with reputable suppliers like Changzhou Huake Polymer Co., Ltd., manufacturers gain access to advanced materials and professional support, ensuring successful VARTM projects and superior composite products that meet rigorous industry standards.
