HS-1013S
HUAKE
Principal Properties & Application:
HS-1013S is an unsaturated polyester resin specifically designed for making flame-retardant lighting panels. It has good light transmittance, mechanical strength, flame retardancy, and good weather resistance and yellowing resistance. It is suitable for both mechanized and hand lay-up processes.
Technical Specifications of Liquid Resin:
| Item | Unit | Indicator | Test Method |

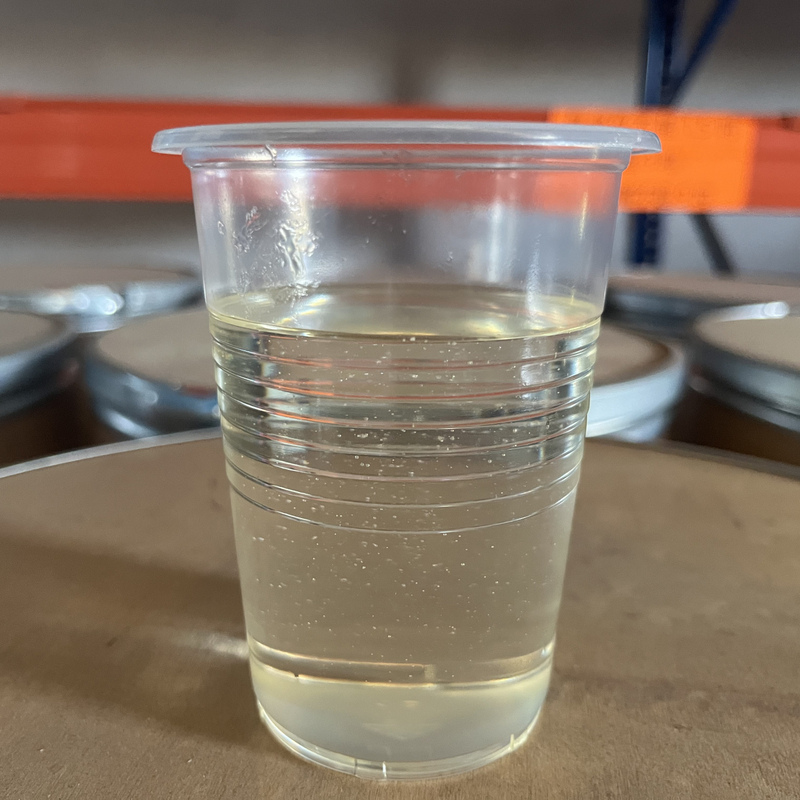

| Appearance | --- | Light yellow transparent liquid | GB/T 8237.6.1.1 |
| Viscosity | 25℃, cp | 180-260 | GB/T 7193.4.1 |
| SPI-GT | min | 0.8-2.0 | HK-D-DB001 |
| SPI-CT | min | 2.8-4.5 | HK-D-DB001 |
| SPI-PET | ℃ | 180-210 | HK-D-DB001 |
| Color Code | Harzen | ≤60 | GB/T 605 |
Curing system in SPI test: Accelerator KC: 2% Hardener M-50: 1.2%;
Cast Physical properties(for reference only):
| Item | Unit | Measured Value | Test Method |
| Tensile Strength | MPa | 60 | GB/T 2568 |
| Bending Strength | MPa | 108 | GB/T 2570 |
| Elongation at Break | % | 3.0 | GB/T 2568 |
| Heat Distortion Temp | ℃ | 70 | GB/T 1634 |
| Oxygen Index | % | 26 | GB/T 3854 |
Note:
1) The casting is made according to GB/T8237;
2) Accelerator (0.6% Co-Naph): 2%; Curing agent (AKZO M-50): 2%;
3) The post-curing conditions: RT×24hrs + 60℃×3hrs+100℃×2hrs.
|Application:
HS-1013S is designed for making flame-retardant lighting panels.

 Lighting Panel

 Lighting Panel

 Lighting Panel
